DOT

Sound-absorbing panels made of microperforated aluminum metal sheet

Wall or ceiling

DOT are sound-absorbing panels made of micro-perforated aluminum metal sheet, designed and developed to correct reverberation created within environments, from private rooms to auditoriums. They can be applied either on ceilings or on walls. Starting from the minimum surface area required for acoustic correction, customers can choose the size, quantity, color, and shape, while also satisfying aesthetic requirements

Technical specifications

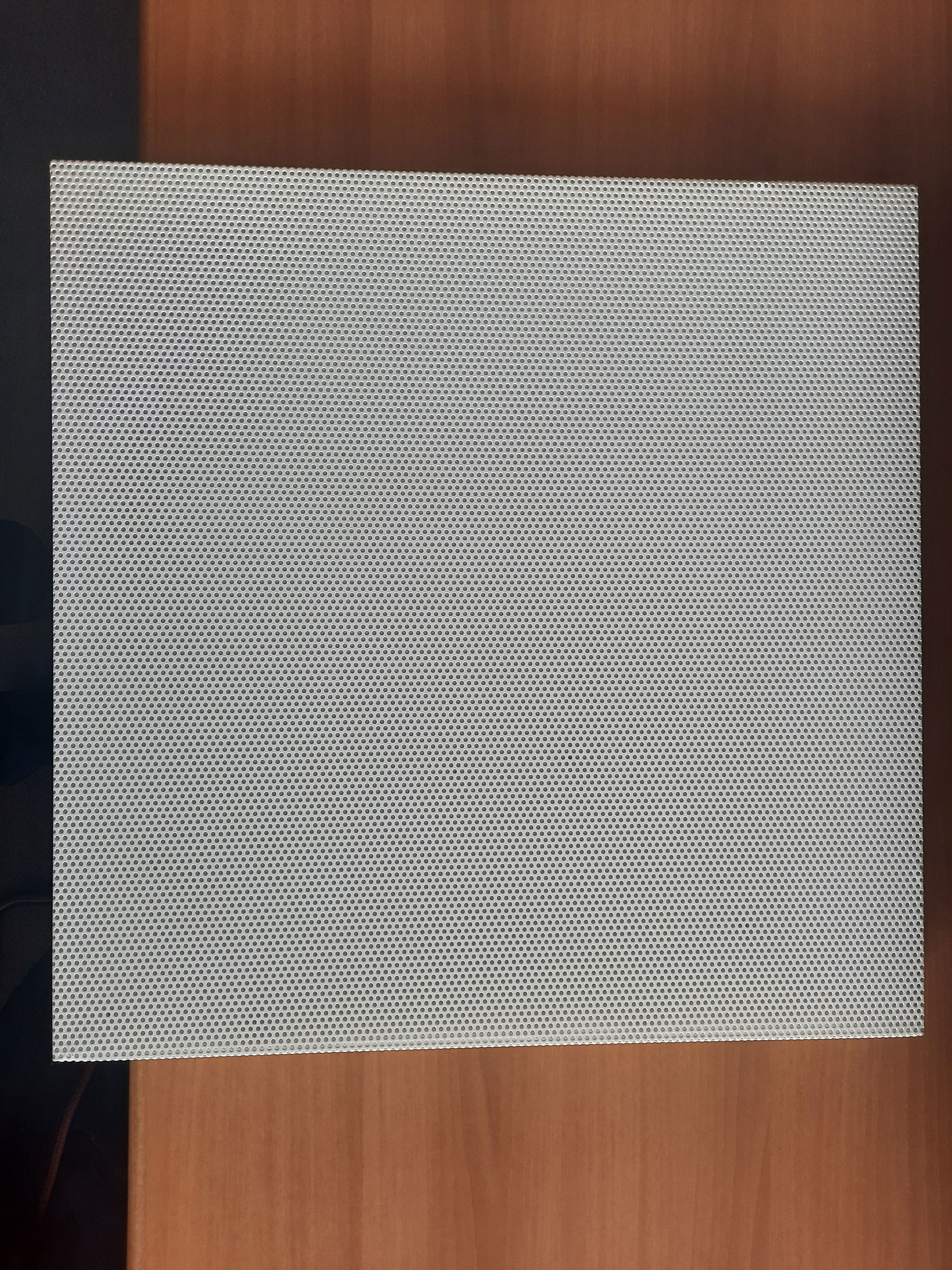

The exterior is made of a lightweight, easily washable microperforated aluminum sheet structure.
Thanks to the powder coating, resistance to abrasion and corrosion is guaranteed.
The interior sound-absorbing material is made of polyester fiber, classified as Class B for reaction to fire.
The absence of blind spots allows the product to achieve 100% sound absorption.
The standard overall thickness is 50 mm.
The panels are applied at a 30 mm distance from the ceiling/wall with the use of custom-made metal profiles.
Thanks to its ease of assembly, do-it-yourself installation is possible using the wall and/or ceiling mounts provided.
The panels have been tested in our lab and, upon request, we can provide acoustic test reports.
Sound absorption coefficient according to the UNI EN ISO 10534-2:2001 standard.

❮

❯

Shapes and sizes

*Dimensioni, forme, finiture e colori personalizzabili su richiesta

Width

47,5 cm

Height

47,5 cm

Thickness

5 cm

Available fixing options

Removable mechanical fixing with C-brackets or customized supports

Fields of application

DOT sound-absorbing panels are ideal for correcting reverberation in rooms with different uses: offices, meeting rooms, lobbies, reception areas, music listening rooms, professional offices, waiting rooms, bars, restaurants, etc.
