Silencers, barriers and integrated systems
Silenziatori industriali e barriere acustiche ad alte prestazioni per ambienti civili e industriali

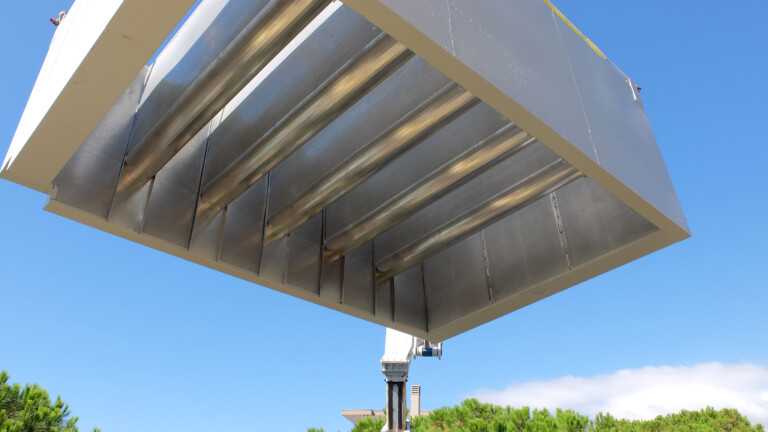

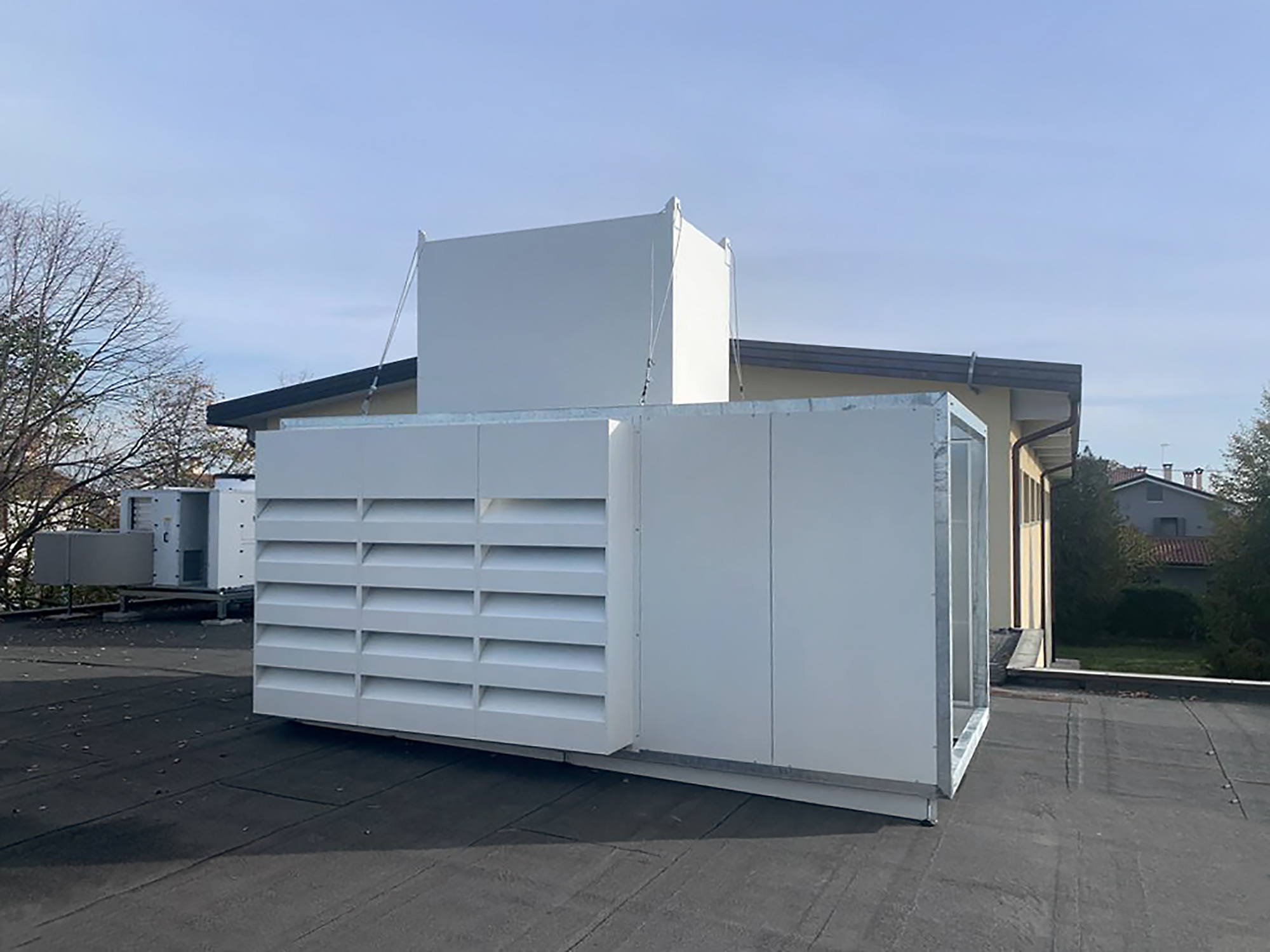

Marvinacustica industrial silencers, industrial acoustic barriers, and integrated systems are designed to reduce and control noise generated by civil and industrial plants that can cause discomfort in surrounding environments or fail to meet required acoustic limits. These solutions intervene in a targeted manner on noise, acting along its propagation path or directly at the source through shielding, absorption, and acoustic attenuation systems. The goal is to improve the acoustic comfort of environments, protect neighboring areas, and contribute to compliance with current regulations regarding noise emissions. Marvinacustica develops silencers, noise barriers, and integrated soundproofing systems based on project requirements, evaluating plant characteristics, required performance, operating conditions, and installation context to offer effective and customized solutions.
Technical specifications

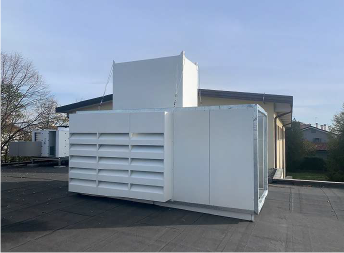

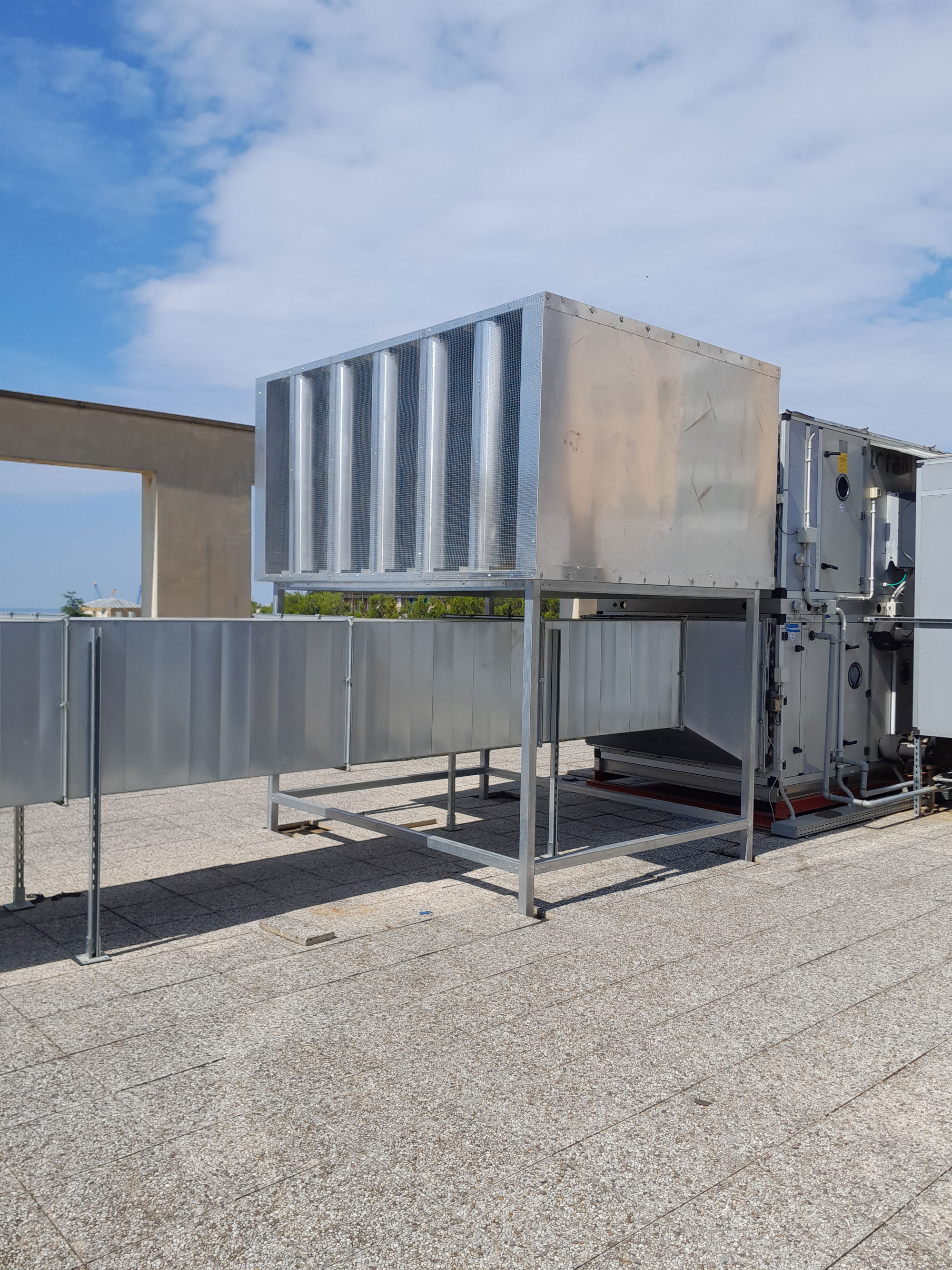

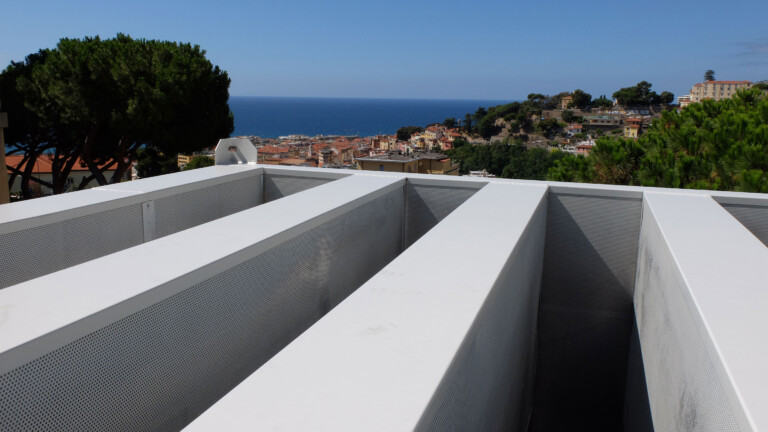

Marvinacustica industrial silencers are designed to ensure high noise attenuation performance, durability, and adaptability to various application contexts, both civil and industrial.
- Supporting structure in galvanized sheet metal, stainless steel, or aluminum, with thicknesses varying according to dimensions and operating conditions.
- Sound-absorbing panels covered with micro-perforated fabric or dust-proof, anti-fraying velour fabric resistant to abrasion from air flow.
- The interior sound-absorbing material is made of mineral wool, classified as Class A1 for reaction to fire.
- Variable noise attenuation depending on the model and frequency.
- Anti-turbulence internal design to reduce sound regeneration.
- Compatibility with high speeds in ducts .
- Standard lengths from 900 mm to 1800 mm, with the possibility of modularity to increase attenuation.
- Customizable based on project requirements/needs and desired air flow.
- Resistance to moisture and condensation with appropriate surface treatments.
- Possibility to perform acoustic and aerodynamic tests in the laboratory.
- Possibility of compliance with specific industry standards (HVAC, industrial, marine).

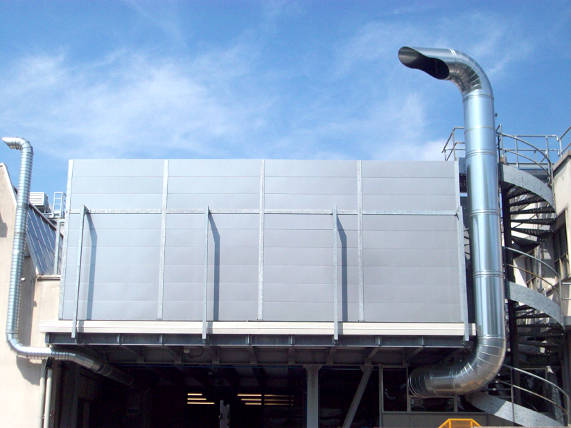

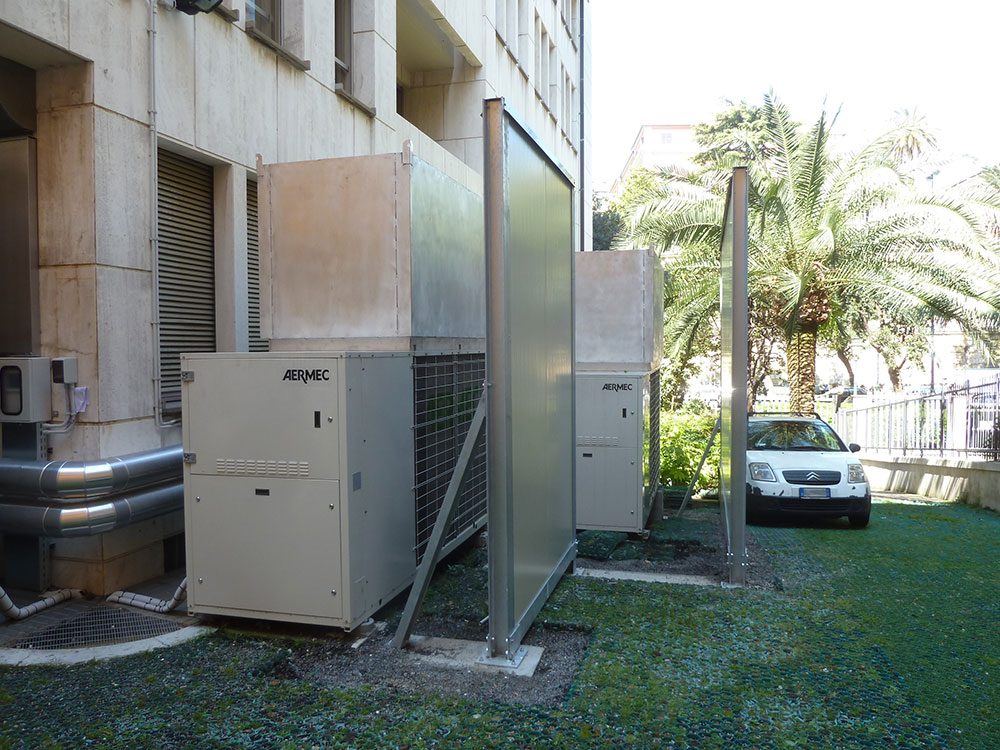

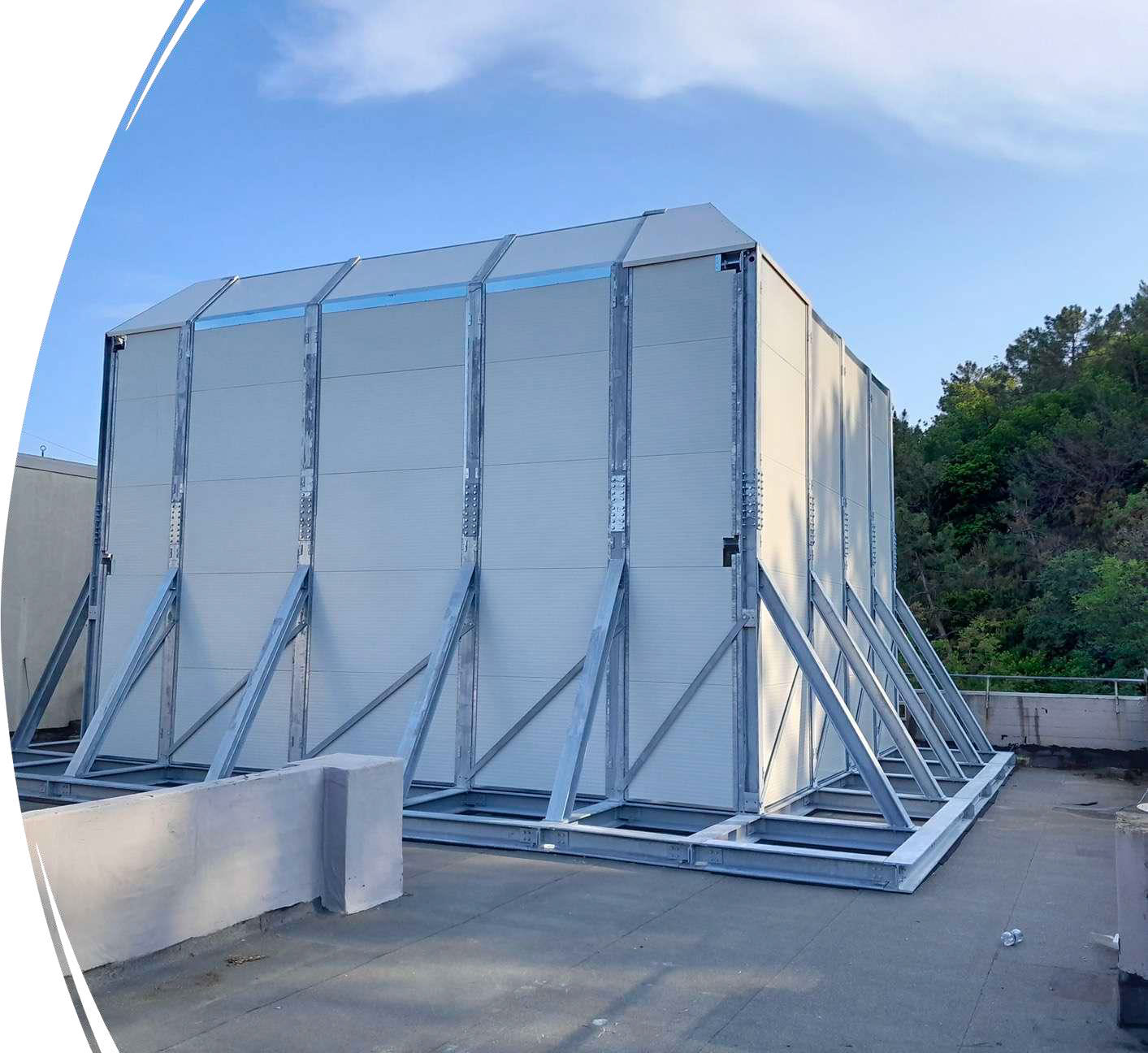

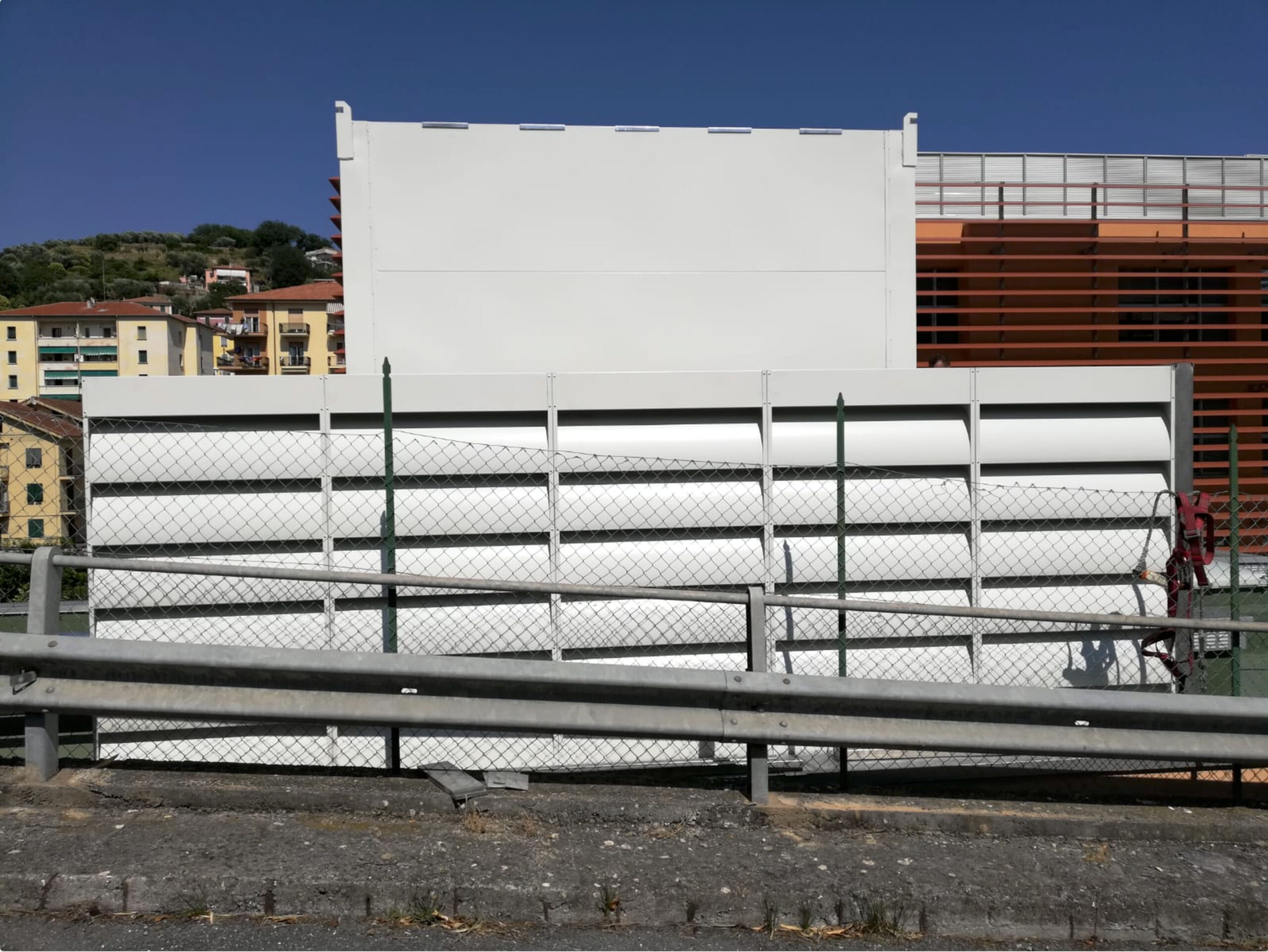

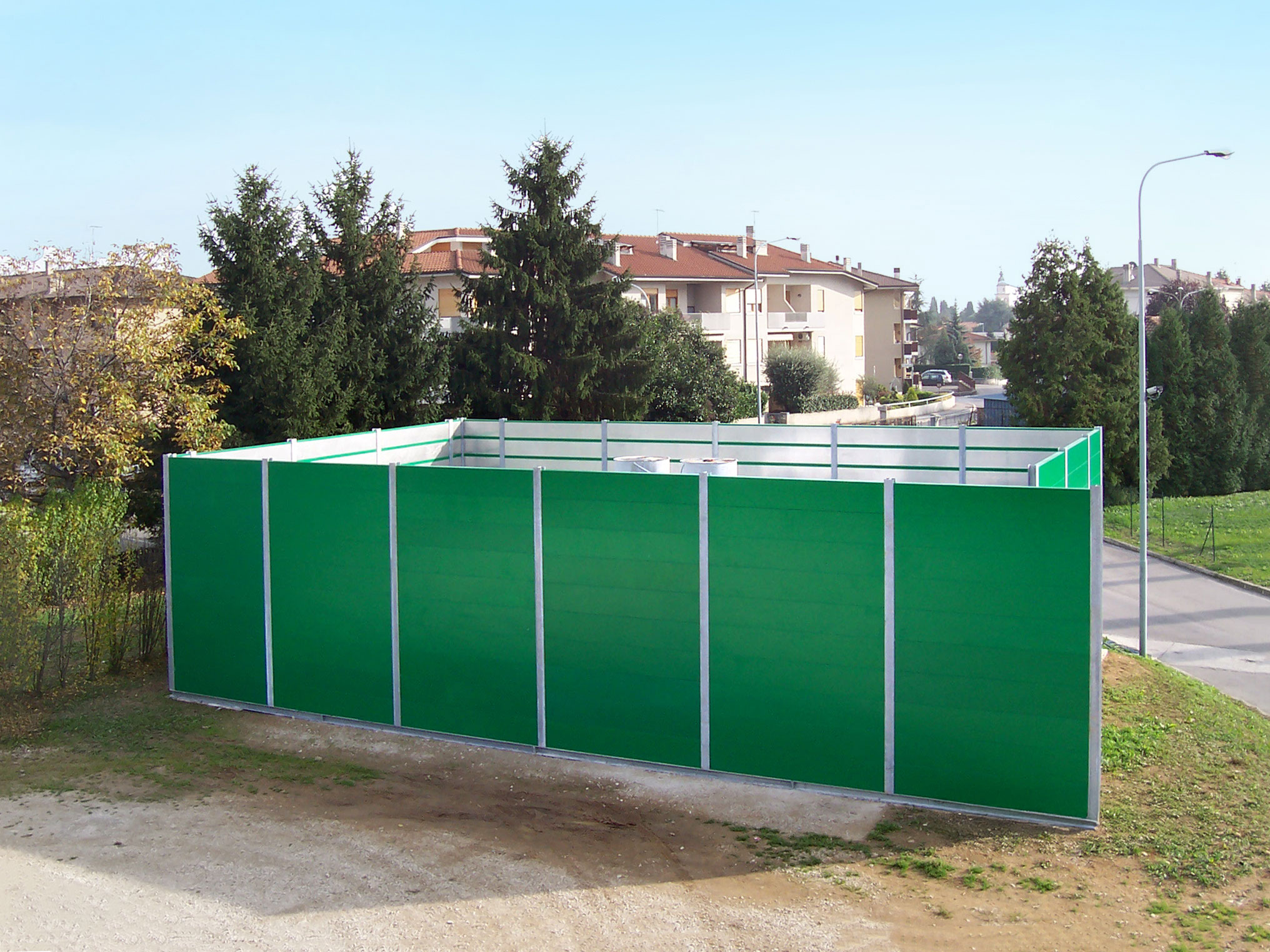

Marvinacustica industrial acoustic barriers are designed to ensure high noise attenuation performance, durability, and adaptability to various application contexts, both civil and industrial.
- Supporting structure made with a system of galvanized steel profiles that are easy to clean.
- Barrier composed of acoustic panels with an internal part in micro-perforated sheet metal and external cladding in solid sheet metal.
- Powder coating ensures resistance to abrasion and corrosion.
- Standard beige coloring for the ST39 model. For both the ST39 and M100 models, it is possible to choose a RAL color.
- The interior sound-absorbing material is made of high-density mineral wool, classified as Class A2 for reaction to fire.
- The standard overall thickness is 100 mm.
- Custom-made based on project requests/needs and specific acoustic insulation or thickness requirements.
- Resistance to moisture and condensation with appropriate surface treatments.
- Possibility of compliance with specific industry standards (HVAC, industrial, marine).
- Acoustic insulation according to the UNI EN ISO 10140-2:2021 standard.
Fields of application

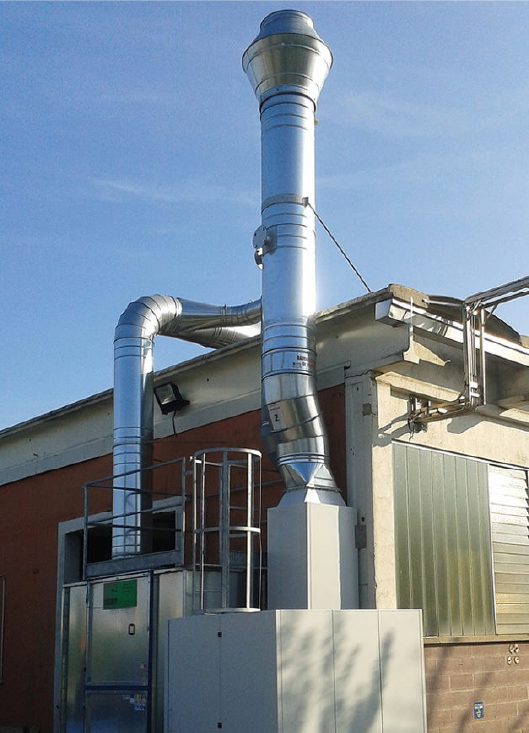

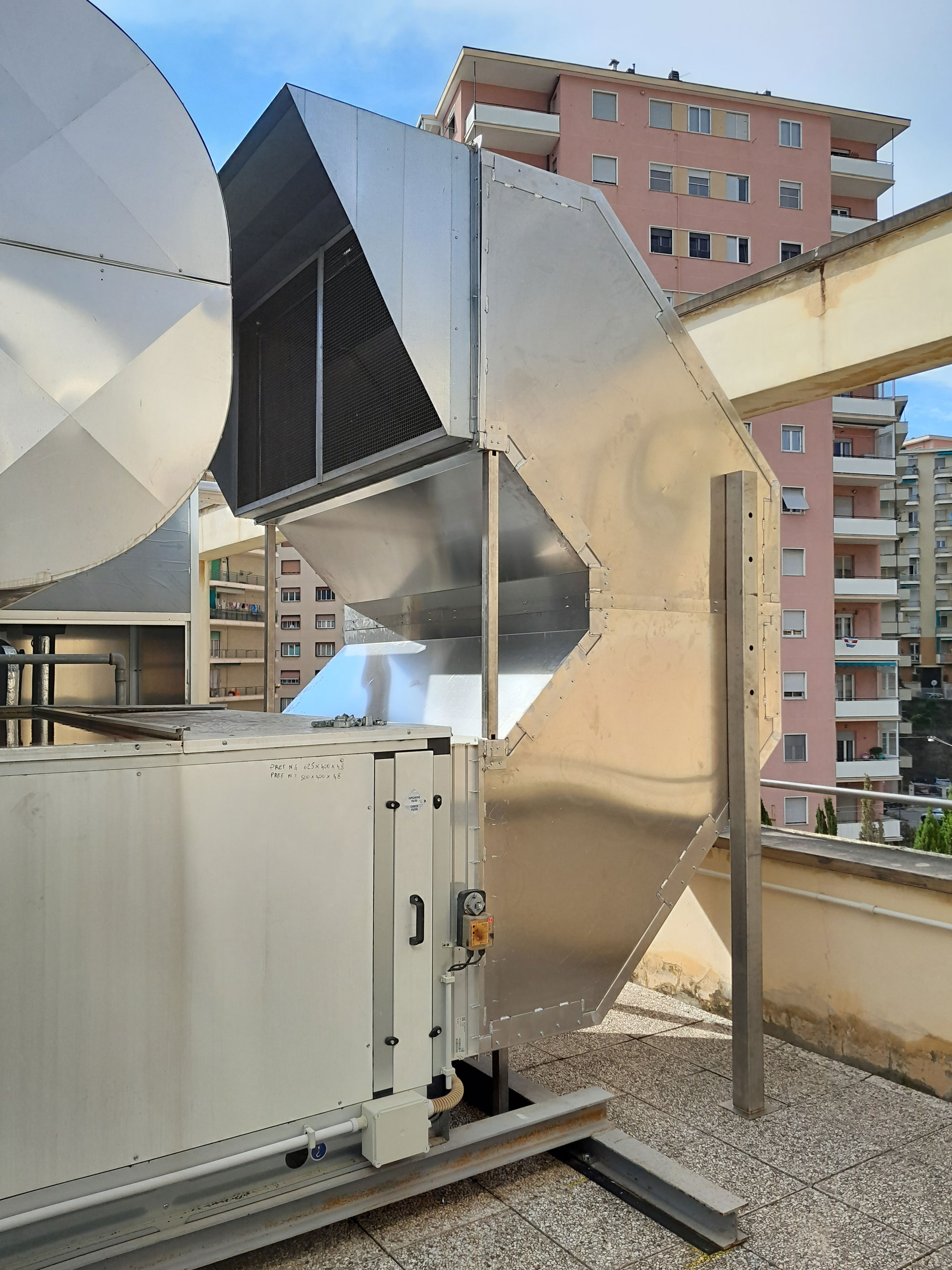

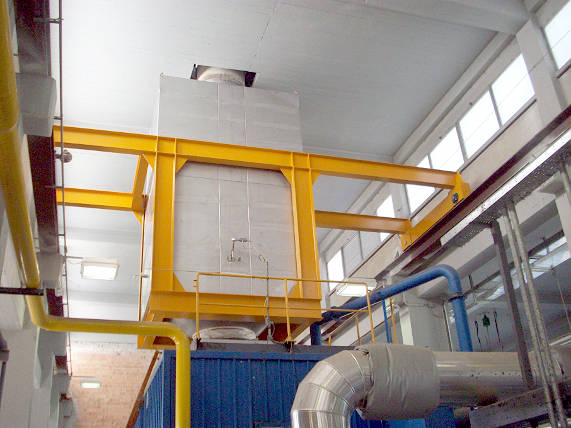

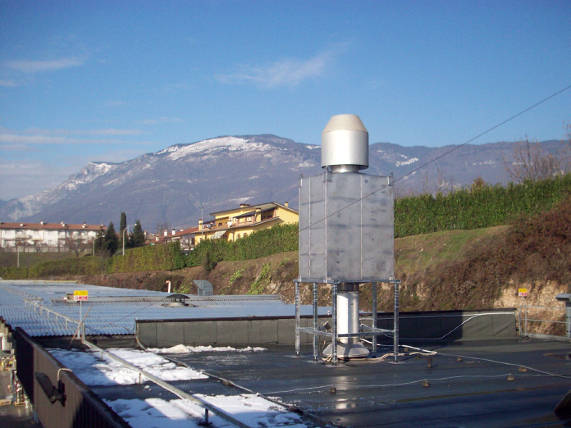

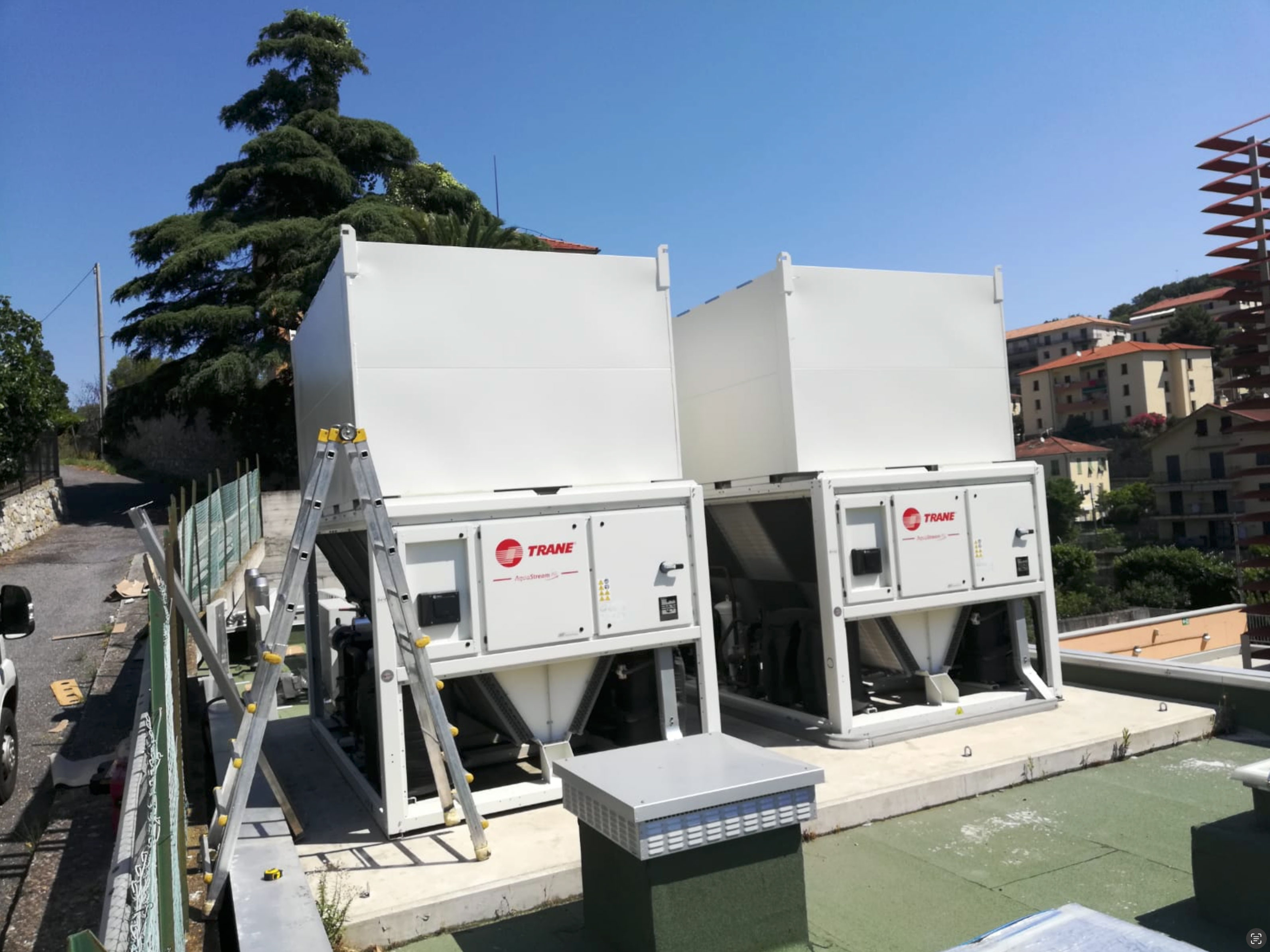

Marvinacustica silencing systems and industrial silencers find application in all contexts where it is necessary to control noise generated by technological plants, ventilation systems, and high-noise equipment. Silencers are particularly suitable for ventilation plants, HVAC systems, industrial suction lines, compressors, turbines, generators, and other applications where noise propagates through ducts or plant systems.
- Industry: solutions for production plants, technological lines, HVAC systems, compressors, turbines, generators, and suction plants
- Data Centers: systems for controlling noise generated by ventilation systems, cooling, and technical infrastructures with high operational continuity
❮
❯

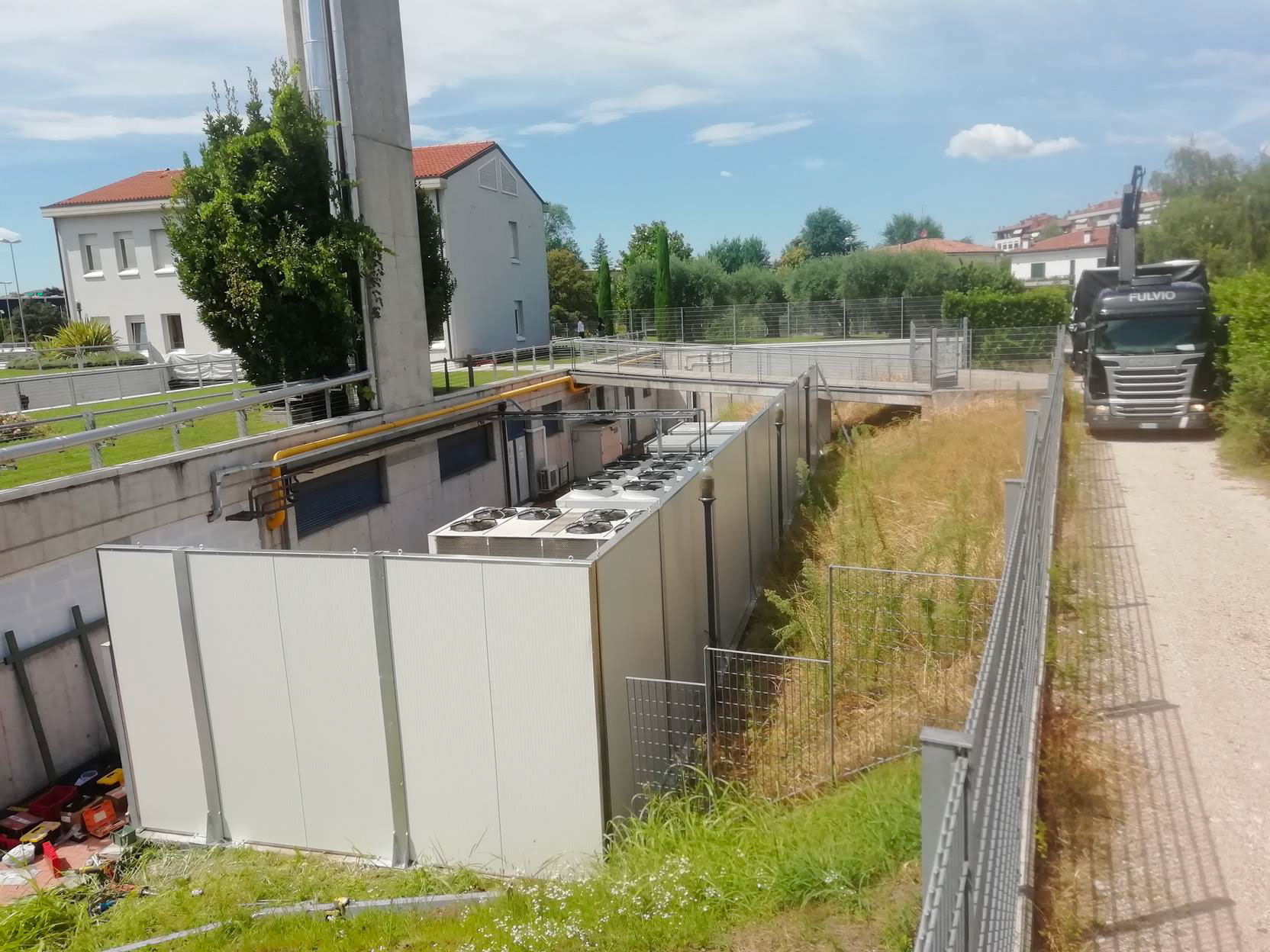

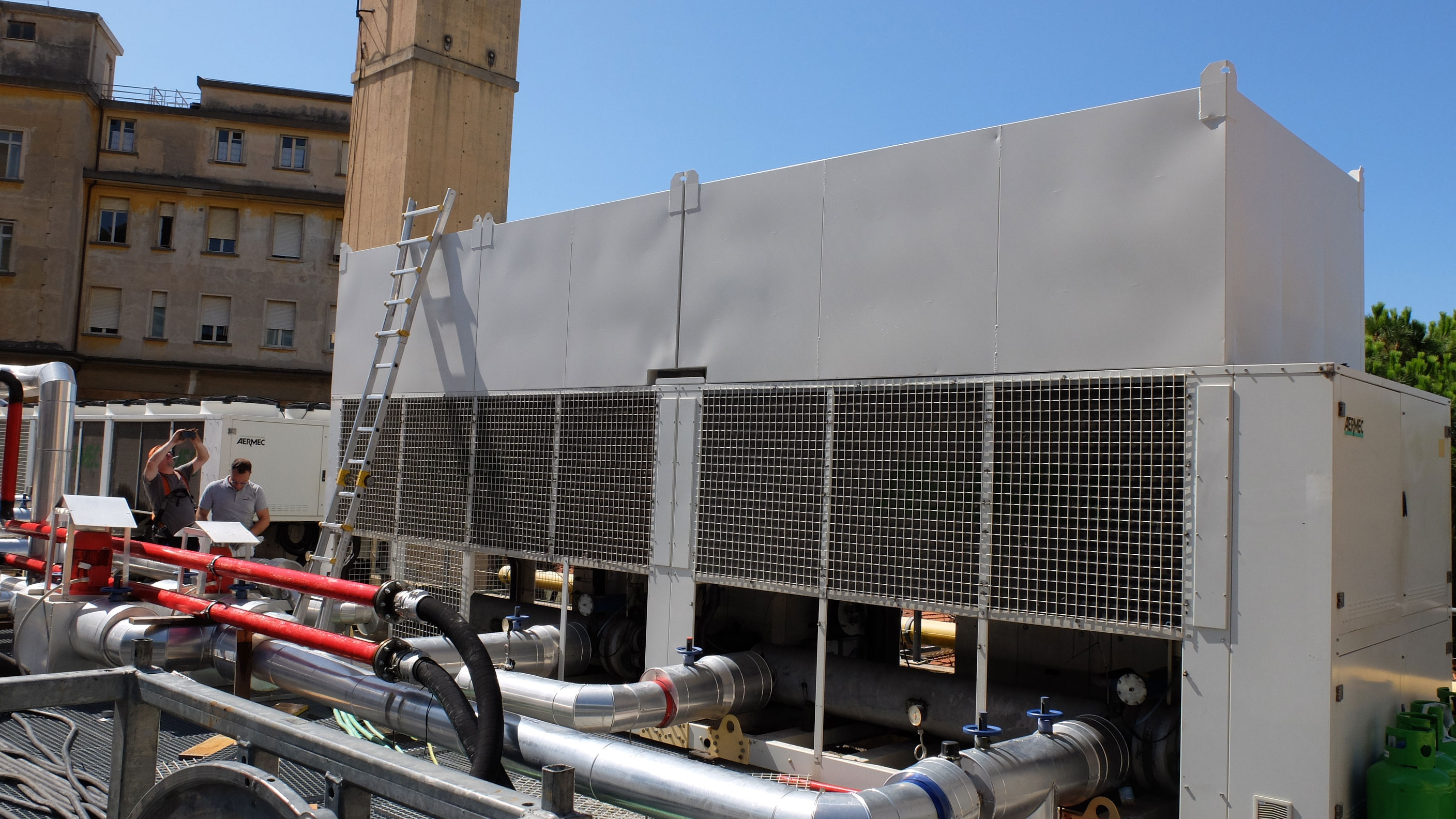

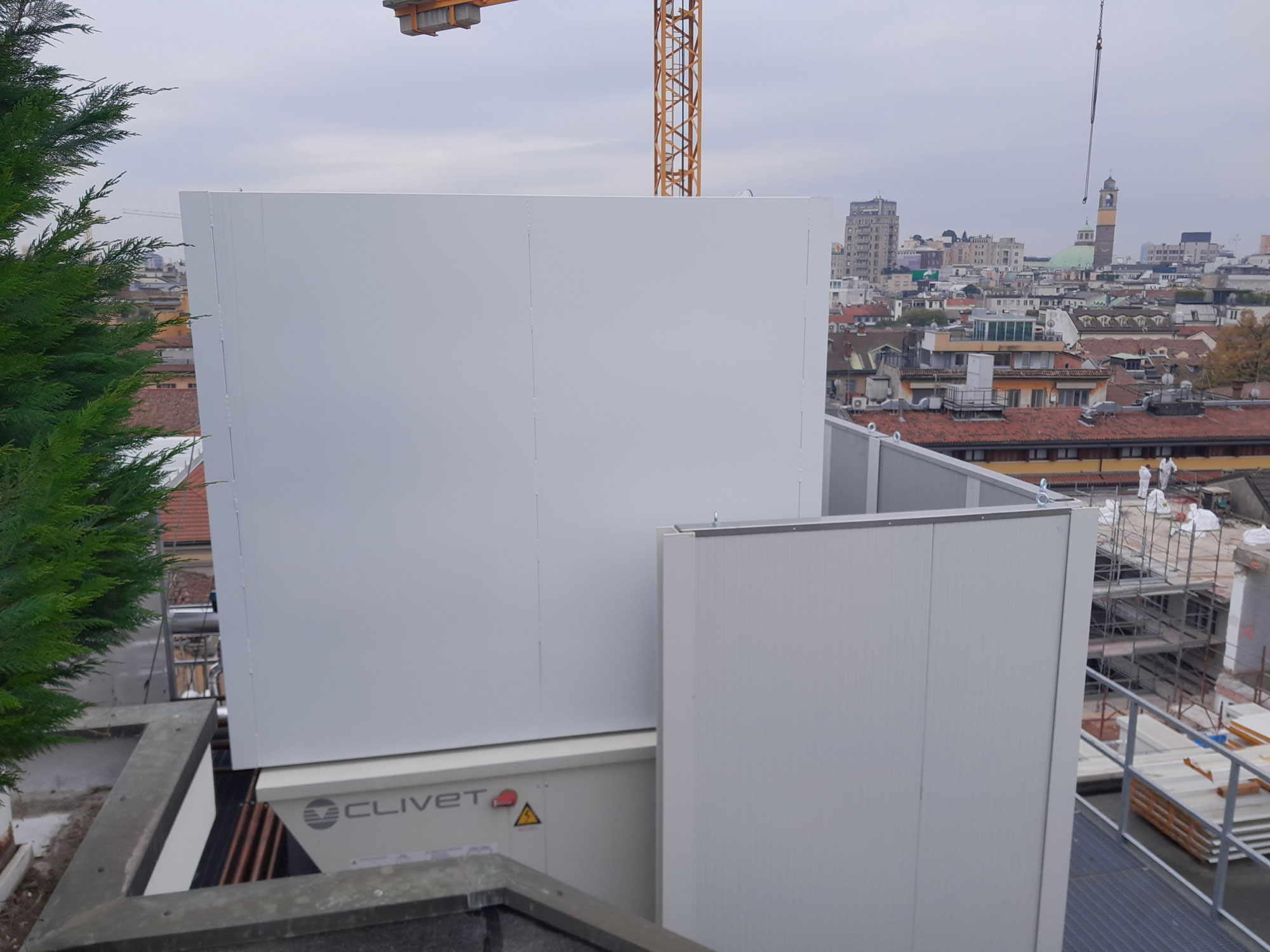

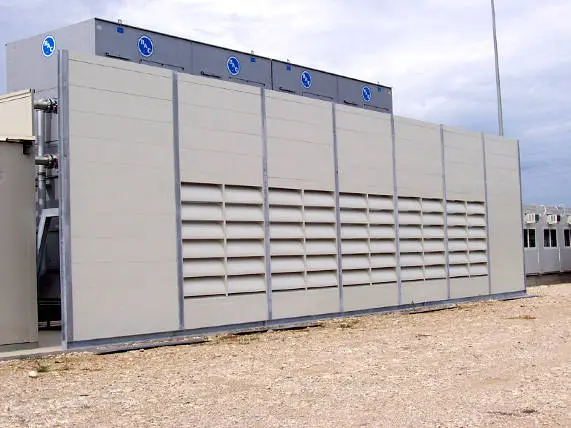

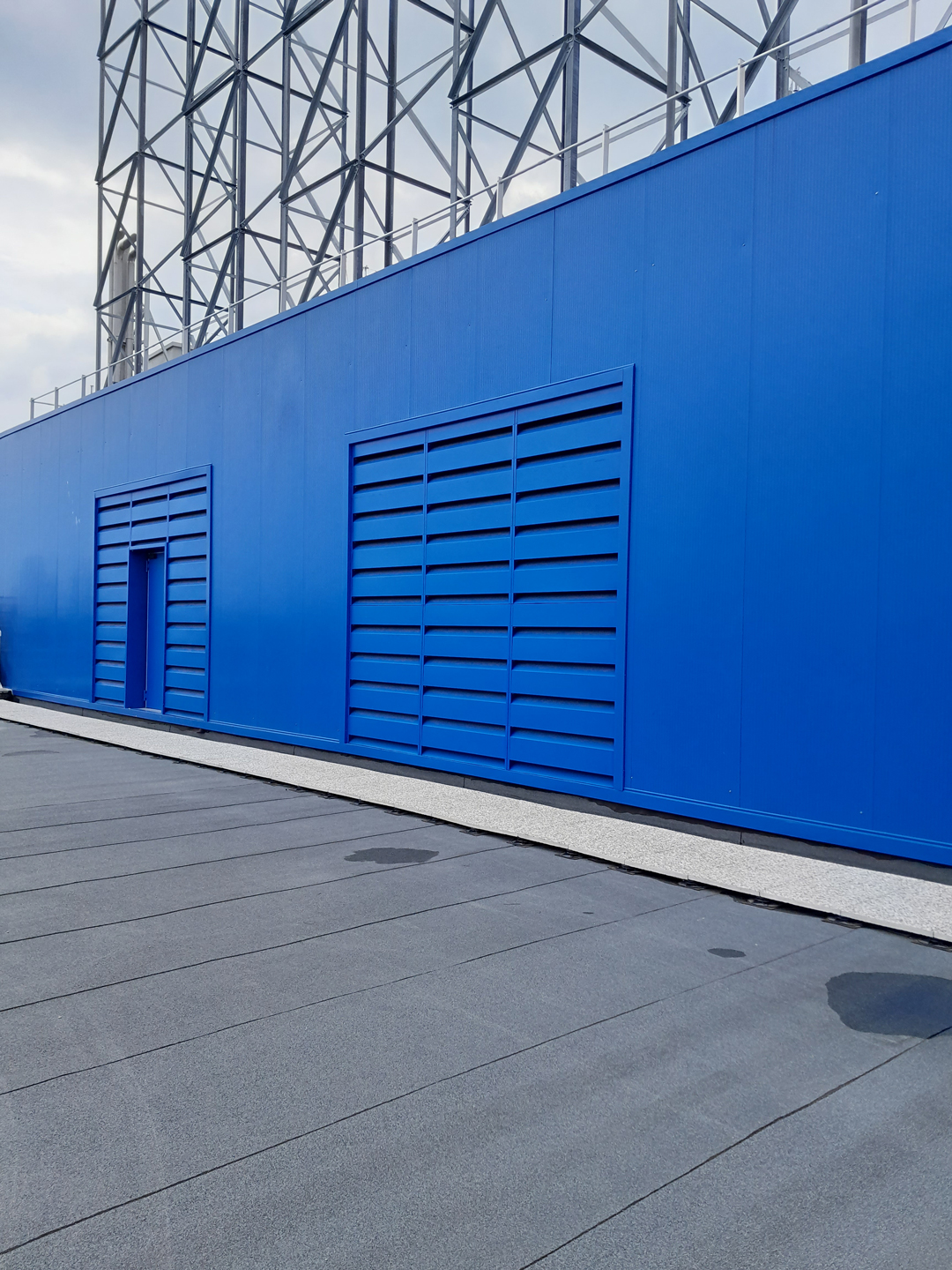

Marvinacustica industrial acoustic barriers find application in all contexts where it is necessary to control noise generated by technological plants, ventilation systems, and high-noise equipment. Acoustic barriers are effective solutions for shielding and containing noise near the source or along its propagation path, making them suitable for industrial and plant engineering sectors, and all contexts where it is necessary to reduce the acoustic impact on the surrounding environment.
- Industry: solutions for production plants, technological lines, HVAC systems, compressors, turbines, generators, and suction plants
- Data Centers: systems for controlling noise generated by ventilation systems, cooling, and technical infrastructures with high operational continuity
