Suonosoft
Custom sound-absorbing panels in removable fabric
Suonosoft are soft, wool-covered sound-absorbing panels designed and developed to correct reverberation created within environments. They can be applied either on ceilings or on walls. Starting from the minimum surface area required for acoustic correction, the customer can choose the size, quantity, color, and shape, while also satisfying aesthetic requirements.
Technical specifications
- Sound-absorbing, removable, washable, and sanitizable woolcovered panels with color of choice from the catalog.

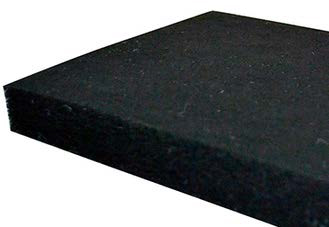

- The interior sound-absorbing material is made of 100% recycled polyester fiber, classified as Class B for reaction to fire.
- The absence of blind spots allows the product to achieve 100% sound absorption.
- The standard overall thickness is from 30 mm to 50 mm.
- The panels are installed using a wide range of fasteners depending on requirements: on walls with springs to be screwed onto the panel, or suspended from the ceiling using steel tie rods.
- Thanks to its ease of assembly, do-it-yourself installation is possible using the wall and/or ceiling mounts provided.
- Sound absorption coefficient according to the UNI EN ISO 10534- 2:2001 standard.
❮
❯
Available fixing options
Removable mechanical wall fixing with springs screwed to the panel

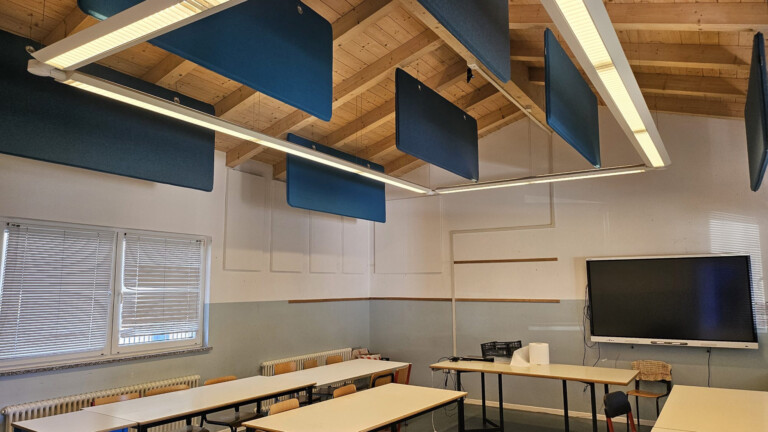

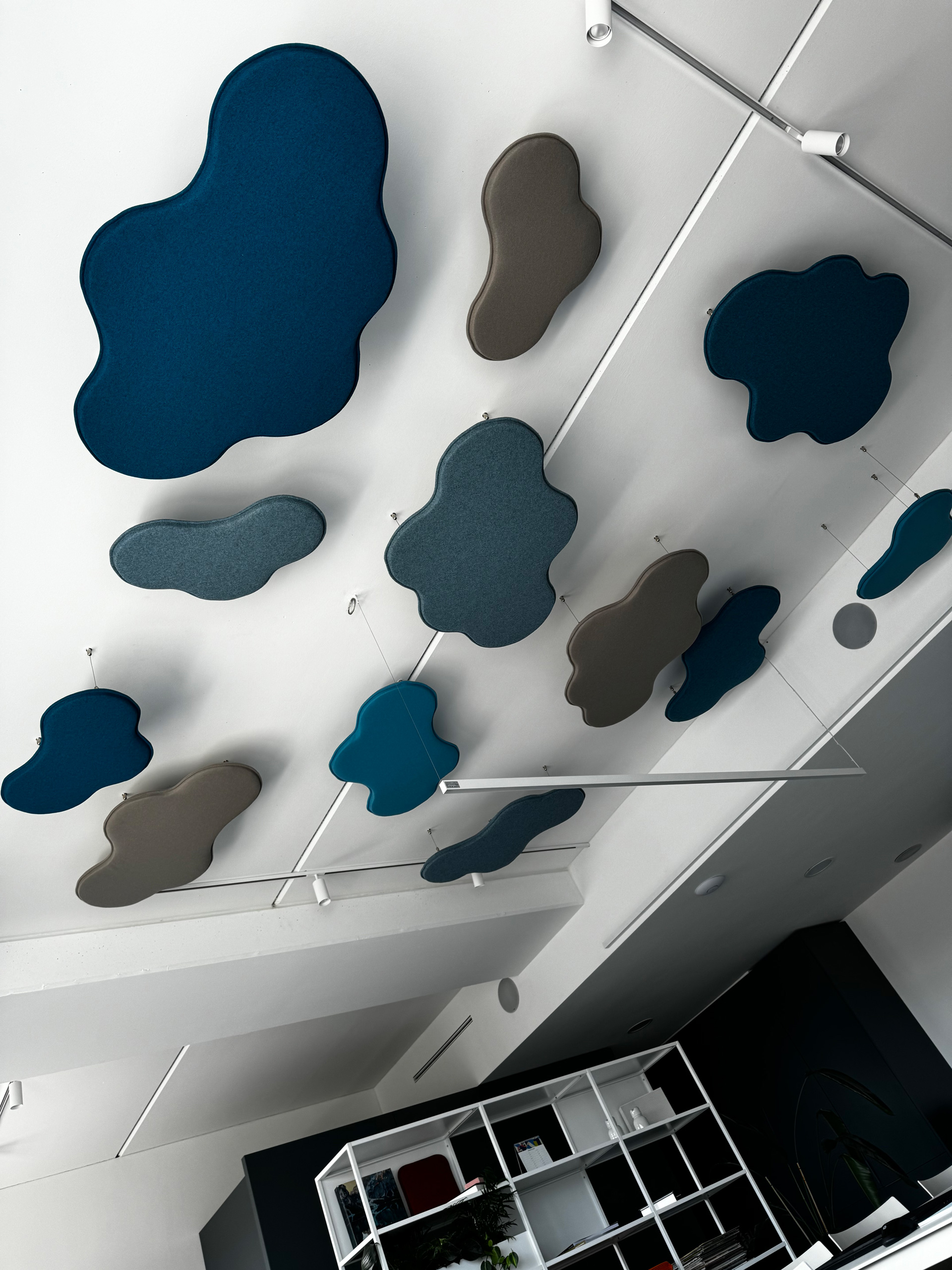

Removable mechanical fixing with suspension kit (steel tie rods screwed to the panel)
Removable magnetic fixing with profiles mounted to the wall/ ceiling
Fields of application

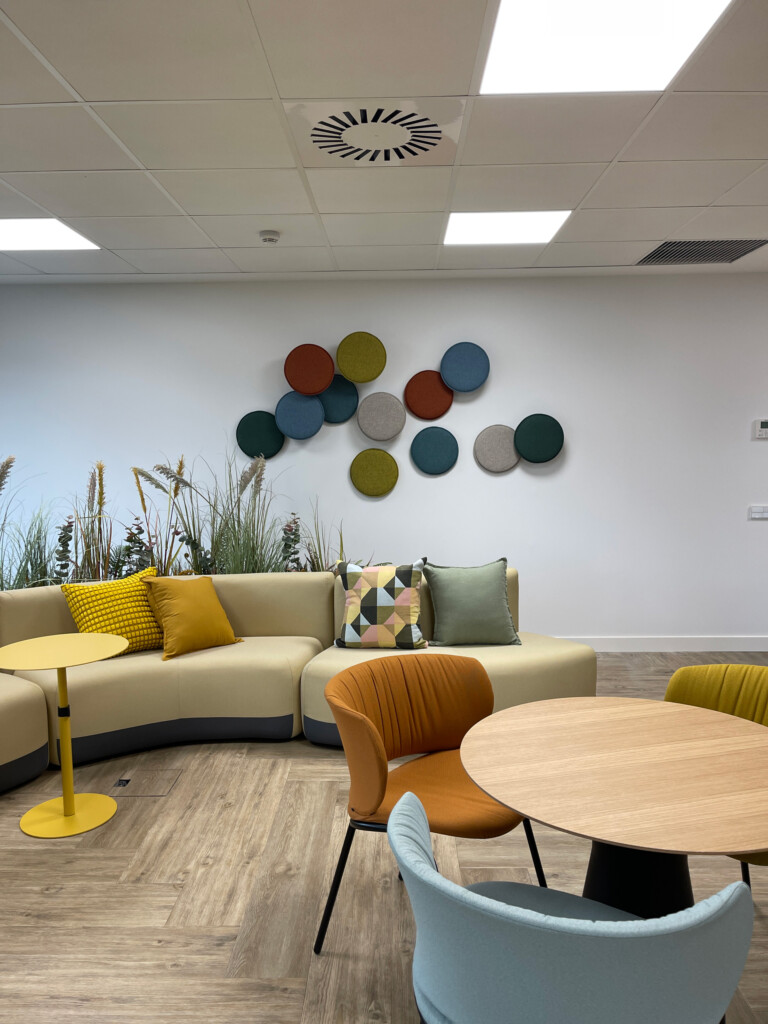

Suonosoft sound-absorbing panels are ideal for correcting reverberation while also furnishing different types of spaces: offices, meeting rooms, lobbies, reception areas, waiting rooms, bars, restaurants, etc.
Would you like to receive more information about Suonosoft by Marvinacustica?
Main shapes and dimensions

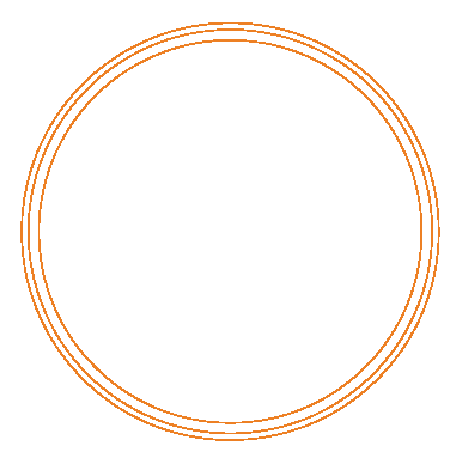

Circle
Min: 50 mm
Max: 1000 mm

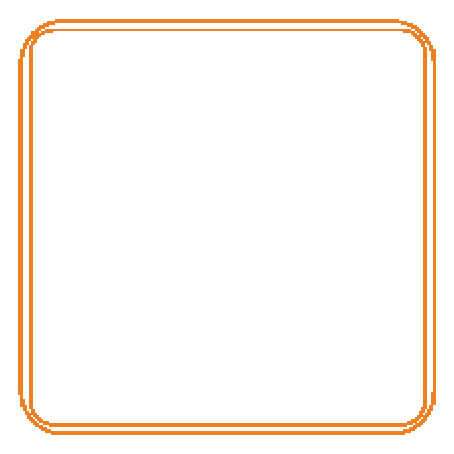

Square
500 × 500 mm
1000 × 1000 mm
Rectangle
Min: 500 × 800 mm
Max: 1000 × 1500 mm

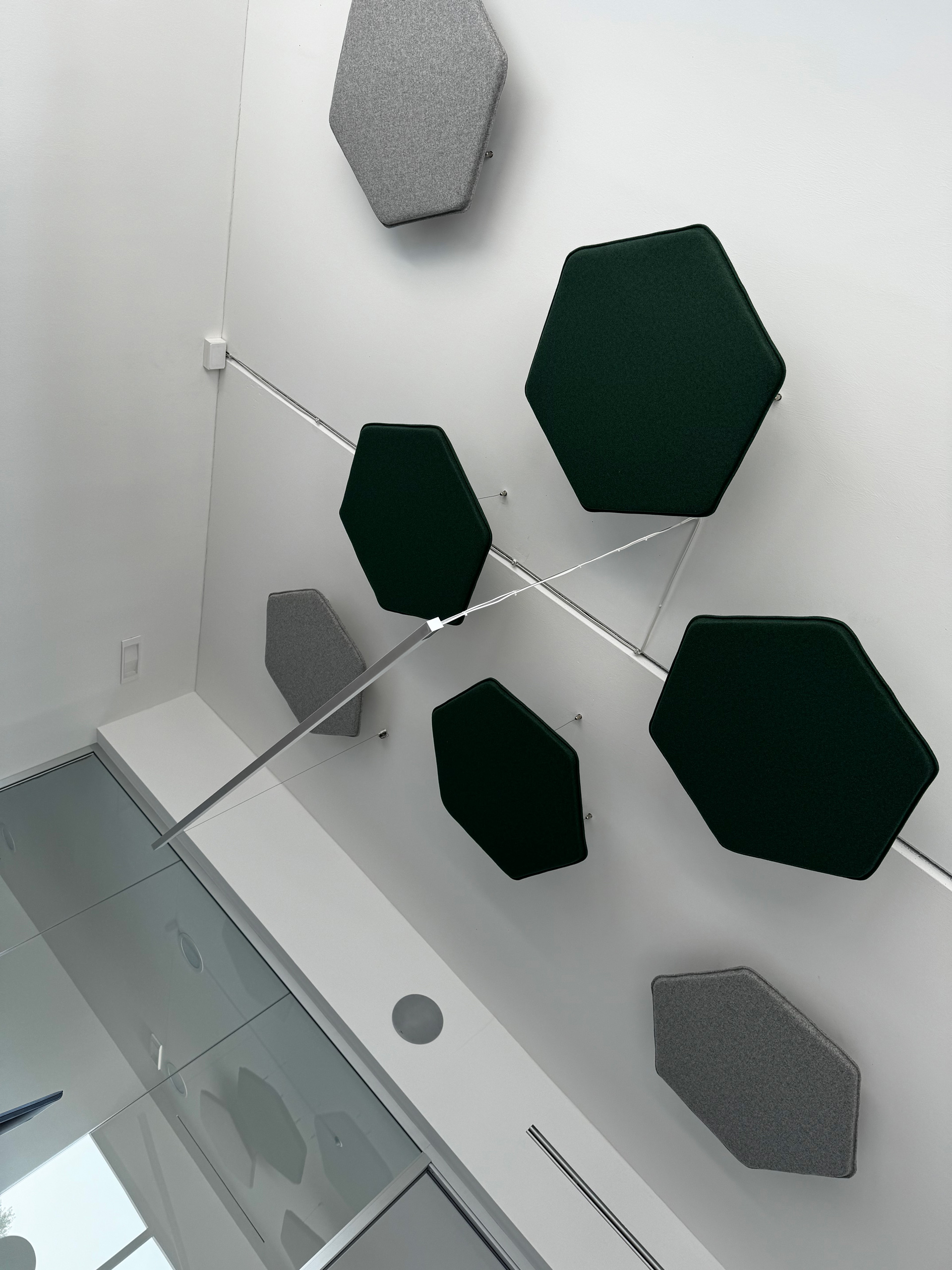

Esagono
Min: 500 × 570 mm
Max: 900 × 1000 mm

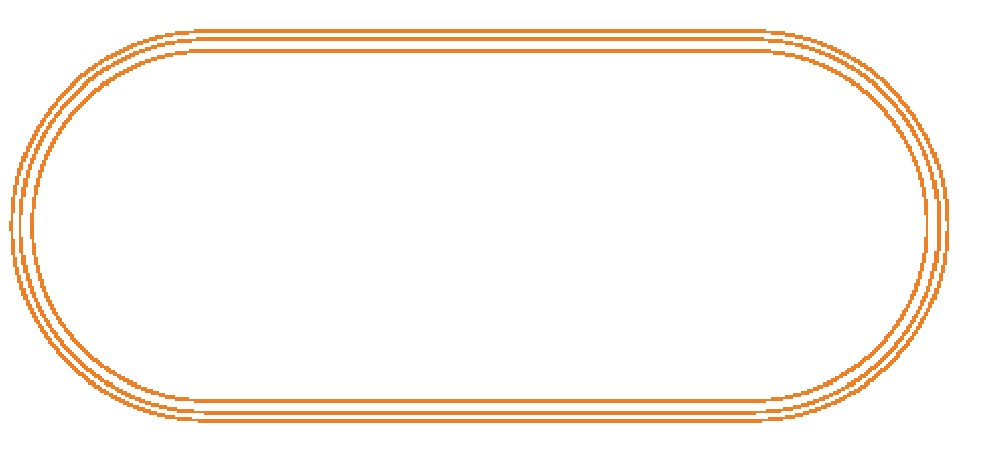

Biscotto
Min: 500 × 1000 mm
Max: 700 × 1400 mm

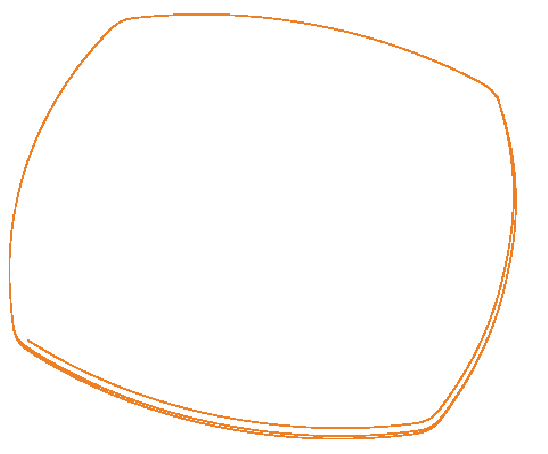

Scudo
Min: 500 × 500 mm
Max: 1000 × 1000 mm

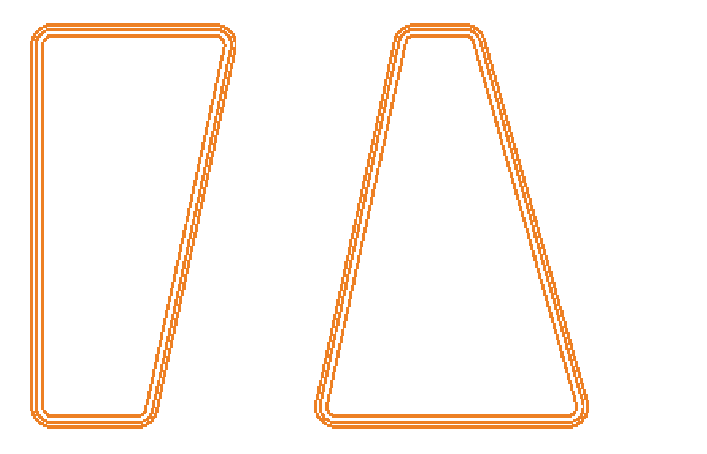

Petalo
Min: 500 × 500 mm
Max: 1000 × 1000 mm

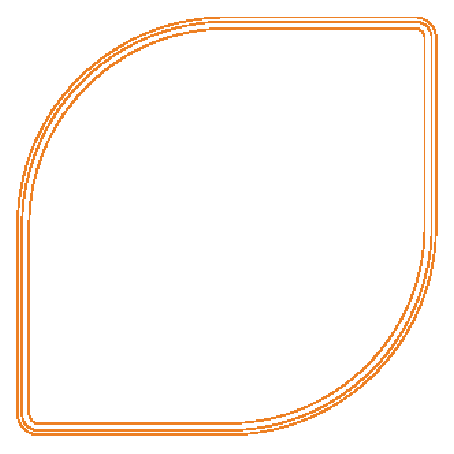

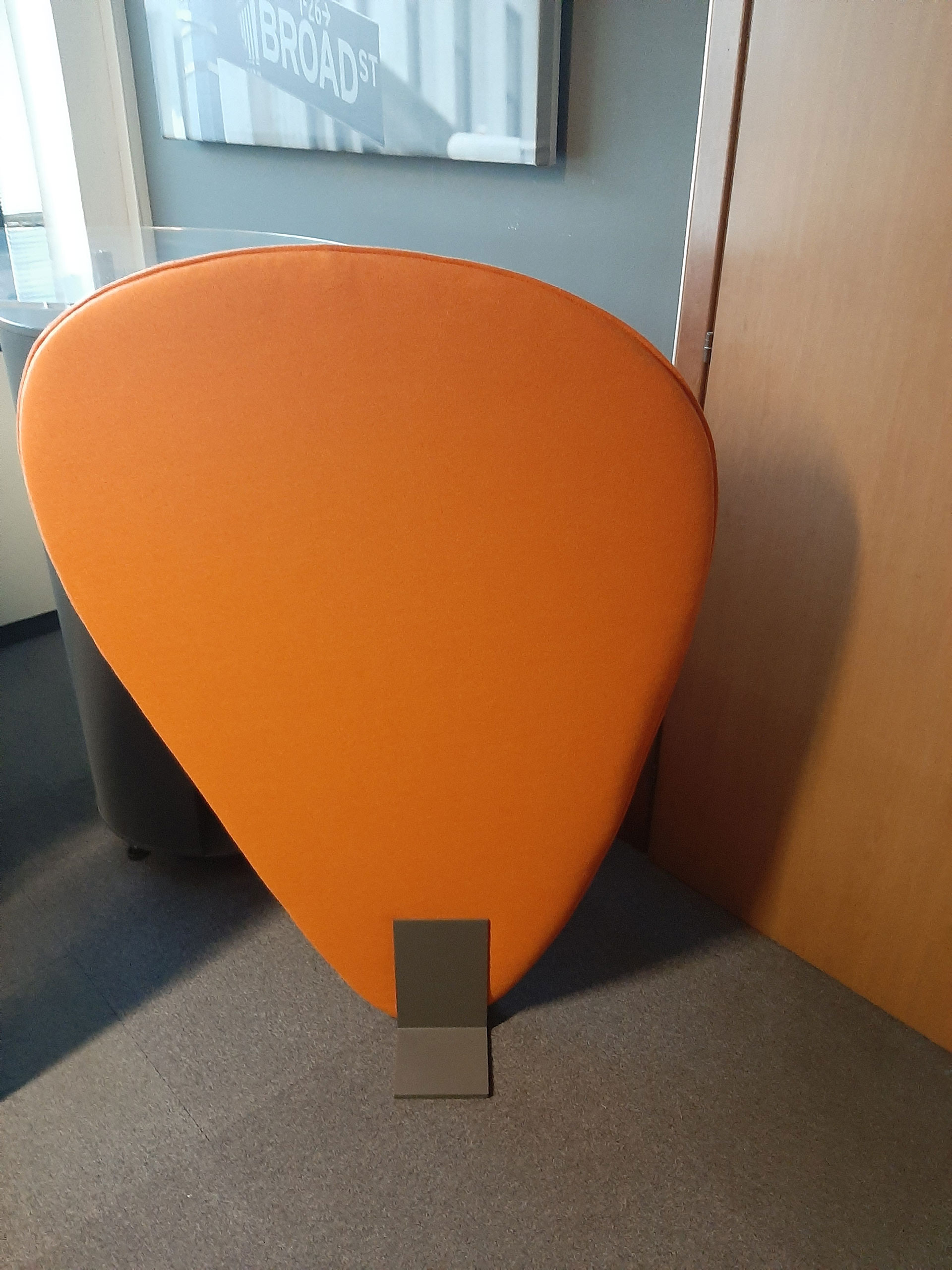

Plettro
690 × 630 mm

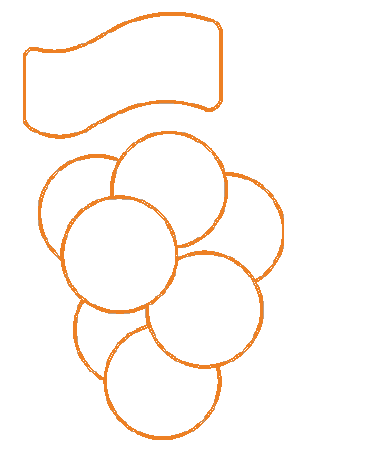

Grappolo
1000 × 1400 mm
Mimetico
Min: 400 × 460 mm
Max: 800 × 1170 mm

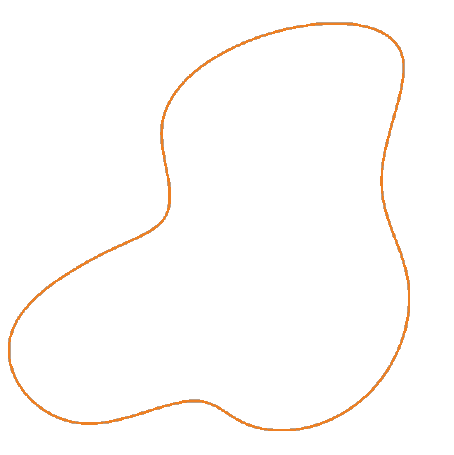

Sky
Min: 600 × 380 mm
Max: 1360 × 970 mm

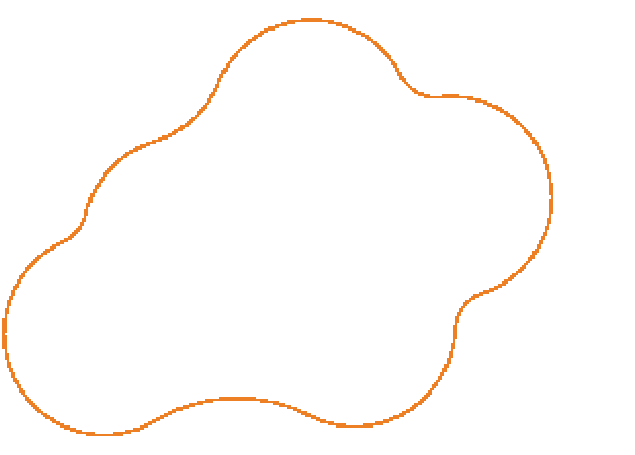

Morse
Fronte: 340 × 440 mm
Fianco: 120 mm

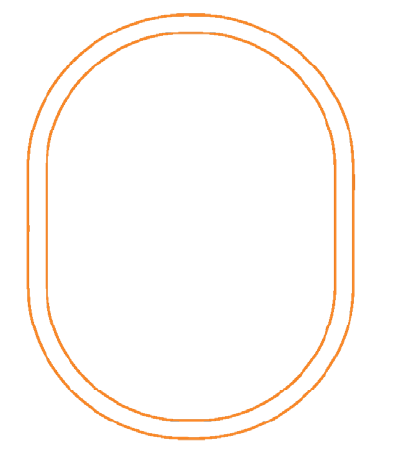

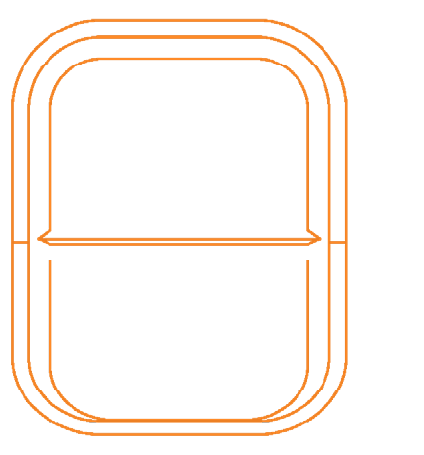

Tasto
Fronte: 300 × 370 mm
Fianco: 120 mm

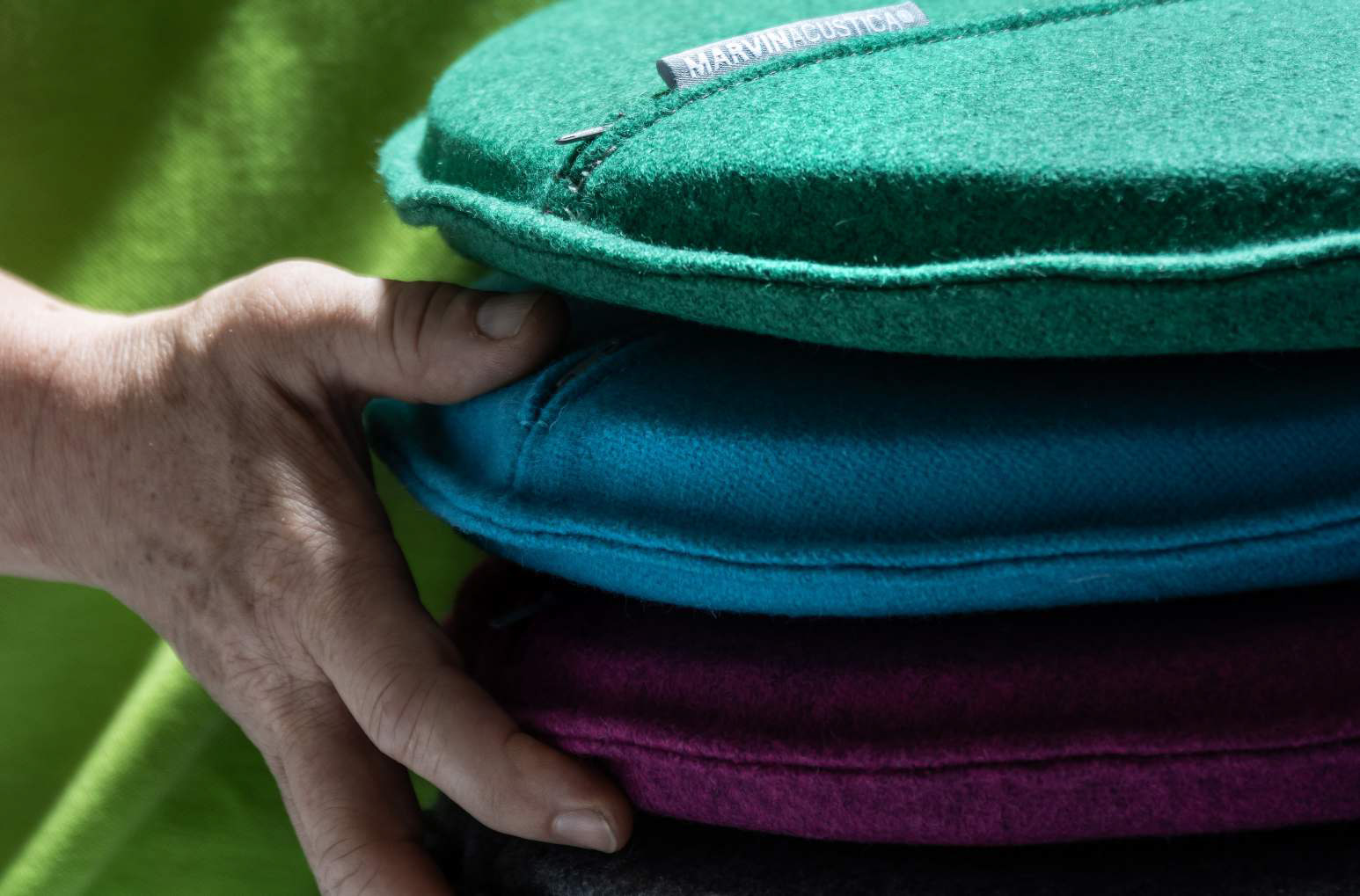

Materials and colors
The sound-absorbing panels in the Suonosoft line are made of adhesive-free fabric that is removable, washable, and sanitizable, completely recycled, and tested for fire resistance. The high-quality, fire-resistant fabric is composed of 100% pure virgin wool and is available in melange or solid color styles.
Resistance:
- abrasion: 50,000 Martindale cycles;
- light (EN ISO 105-B02): 5;
- rubbing (EN ISO 105-X12) wet 4/5, dry 5;
- UNI EN ISO 354:2003;
- Measurement of sound absorption in a reverberation chamber.
Initial analysis – sound level measurements
We are able to provide a complete service consisting of the following phases:
- Acoustic detection with certified phonometric instrumentation;
- Solution study;
- Technical design;
- Production of integrated systems for acoustic insulation.
